100G QSFP28 ZR4 LC Duplex Optical Transceiver 80km SFP28 LR4 103Gbps EML LAN-WDM Transceiver with Digital Diagnostics

Name: 100G QSFP28 ZR4 LC Duplex Optical Transceiver 80km SFP28 LR4 103Gbps EML LANWDM Transceiver with Digital Diagnostics
Brand: Starsurge
Price: 1 USD

Wholesale 100G QSFP28 ZR4 LC Duplex Optical Transceiver 80km SFP28 LR4 103Gbps EML LAN-WDM Transceiver with Digital Diagnostics from china suppliers

Model Number : CC-QKKLL8L-SD

Place of Origin : China

Brand Name : Starsurge

Price : Negotiable

Certification : RoHS CE FCC UL

MOQ : 1 pc

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 2-7days

Packaging Details : carton

Type : Optical Transceiver

Use : Data Center Fiber Optic Network

Warranty Time : 1 year

Network : Ethernet

Port : Duplex LC Interface

Power Source : Single 3.3V Power Supply

Connector Type : LC Duplex

Frequency Range : Based on 4x28Gbps

Transmission Distance : 80km (G.652 Single Mode Fiber)

Data Rate : 103Gbps

Laser Safety Class : Class 1 (Compliant with FDA and IEC60825-1 Standards)

Operating Temperature : -40°C ~ 85°C

Standard : QSFP28 MSA Specification

Digital Diagnostic Function : Supports I2C Interface Digital Diagnostic

Custom Attributes : Suitable for 100GBASE-ZR4 Ethernet

Contact Now

100G QSFP28 ZR4 LC Duplex Optical Transceiver 80km SFP28 LR4 103Gbps EML LAN-WDM Transceiver with Digital Diagnostics

100G QSFP28 ZR4 80km LAN-WDM Transceiver CC-QKKLL8L-SD

CC-QKKLL8L-SD is designed for 103 Gigabit Ethernet links over 80km single mode fiber. It is compliant with IEEE 802.3ba. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.

Applications

100GBASE-ZR4 Ethernet

Standards

 Compliant with QSFP28 MSA Specification

 Class 1 FDA and IEC60825-1 Laser Safety Compliant

Features

 Supports 103Gbps

 Up to 80km for G.652 SMF

 Single 3.3V Power Supply and Power dissipation < 7.5W

 4x28Gbps EML-based LAN-WDM cooling transmitter

 SOA+PIN and TIA array on the receiver side

 4x28Gbps retimed electrical interface

 Duplex LC receptacles

 Operating Case Temperature: -40°C ~85°C

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Q1.What can you buy from us?

Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.

Q2.How about the delivery date?

It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

We supply 12 months warranty time.

Q4.How about the Shipping Method?

We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7.Price questions

The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.

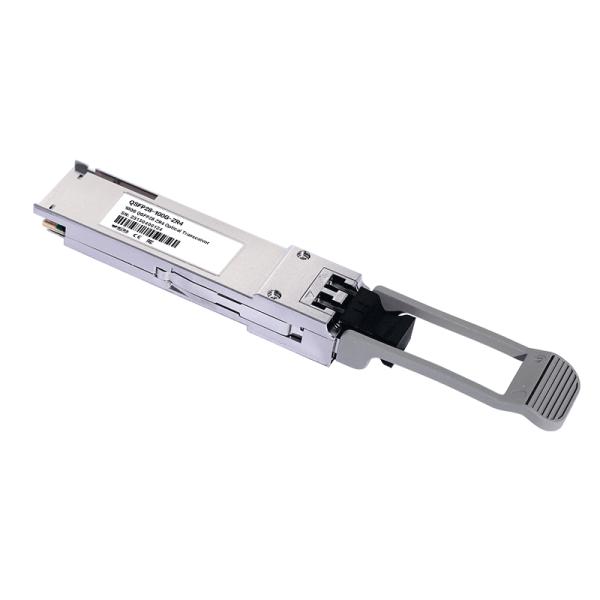

100G QSFP28 ZR4 LC Duplex Optical Transceiver 80km SFP28 LR4 103Gbps EML LAN-WDM Transceiver with Digital Diagnostics Images
